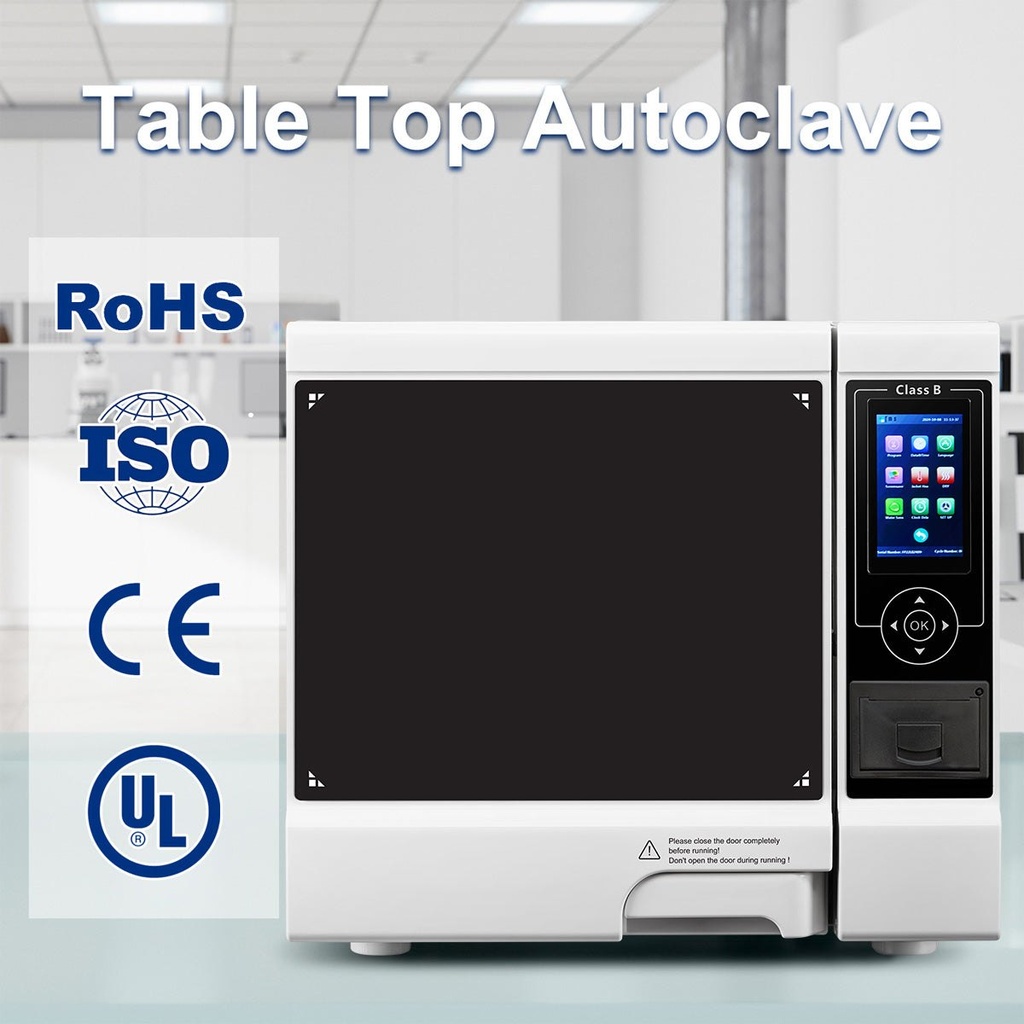

TGA Approved: Precision Sterilisation. Unmatched Reliability.
Your ultimate solution for advanced Class B sterilization in dental, medical, and tattoo clinics.
Unrivaled Performance & Smart Design
-
✓
European Class B Excellence: Ensures comprehensive sterilization, reaching even the most complex instruments with 99% saturated steam.
-
✓
Intuitive LCD Display: Easily view the program running curve and sterilization process in real-time. The 17L/22L models feature a large 4.3" touch screen, while the 8L/12L models use a 2.8" LCD with smart touch keys for simplified operation.
-
✓
Enhanced Durability & Stability: All models are equipped with an imported Italian water pump and solenoid valve for more stable performance and an extended service life.
-
✓
Superior Drying Function: An all-inclusive heating loop ensures sterilised instruments are exceptionally dry, with residual humidity less than 0.2%. The dry time is also adjustable to fit your specific needs.
-
✓
Optimized Cooling System: A large-sized condenser with dual fans perfectly meets electrical safety requirements while efficiently dissipating heat to prevent overheating.
-
✓
Advanced Safety Features: Incorporates a double-door locking-system with both mechanical and electrical locks for ultimate safety, as well as an integrated water quality sensor and automatic alerts for water levels.
-
✓
Seamless Data Management: All models come with a built-in printer for immediate hardcopy records and a USB port for convenient digital data export, ensuring effortless compliance and record-keeping.
-
✓
Intelligent Self-Test Functions: Features a one-click program upgrade and a component fault self-test function that can be run before on-site maintenance, ensuring consistent reliability and easy servicing.
-
✓
Humanized Appointment Function: Designed for efficiency, this built-in program makes scheduling and workflow management easier.
Robust Warranty & Support
Enjoy unparalleled peace of mind with a standard 3-year manufacturing warranty on your Autoclave. Our dedicated online technical support is readily available to assist you.
Technical Specifications & Pricing Comparison
| Specs | 8L | 12L | 17L | 22L |
|---|---|---|---|---|
| Ex-GST Price | $5k | $6k | $7k | $7.5k |
| Chamber Volume | 8 Litres | 12 Litres | 17 Litres | 22 Litres |
| 134°C Class B Cycle Time (with drying) | ~23 min | ~27 min | ~32 min | ~35 min |
| Chamber (Diameter x Depth) | Ø170mm x 320mm | Ø200mm x 368mm | Ø250mm x 360mm | Ø250mm x 450mm |
| Unit (W x H x D) | 566 x 408 x 425 mm | 625 x 438 x 473 mm | ||
| Net Weight | 40 kg | 42 kg | 48 kg | 50 kg |
| Power | 1800VA | |||
| Power Supply | AC110V/220V (50/60Hz) | |||
| Water Tank Capacity | 3.5L (Fresh) & 5L (Waste) | |||
| Display | 2.8" LCD with touch keys | 4.3" wide-angle LCD touch screen | ||
| Connections | USB Port + Built-in Printer | |||
| Optional Features | Auto-fill & Auto-drain Connection Kit: Can be fitted for an additional $500 ex GST. | |||
| Additional Features | Microcomputer control, water quality sensor, automatic pipe cleaning after every 300 cycles. | |||
